二硒化鎢晶體 WSe2(Tungsten Diselenide)-P型
晶體尺寸：~10毫米
電學性能：半導體，P型
晶體結構：六邊形
晶胞參數(shù)：a = b = 0.328 nm, c = 1.298 nm, α = β = 90°, γ = 120°
晶體類型：合成
晶體純度：＞99.995%

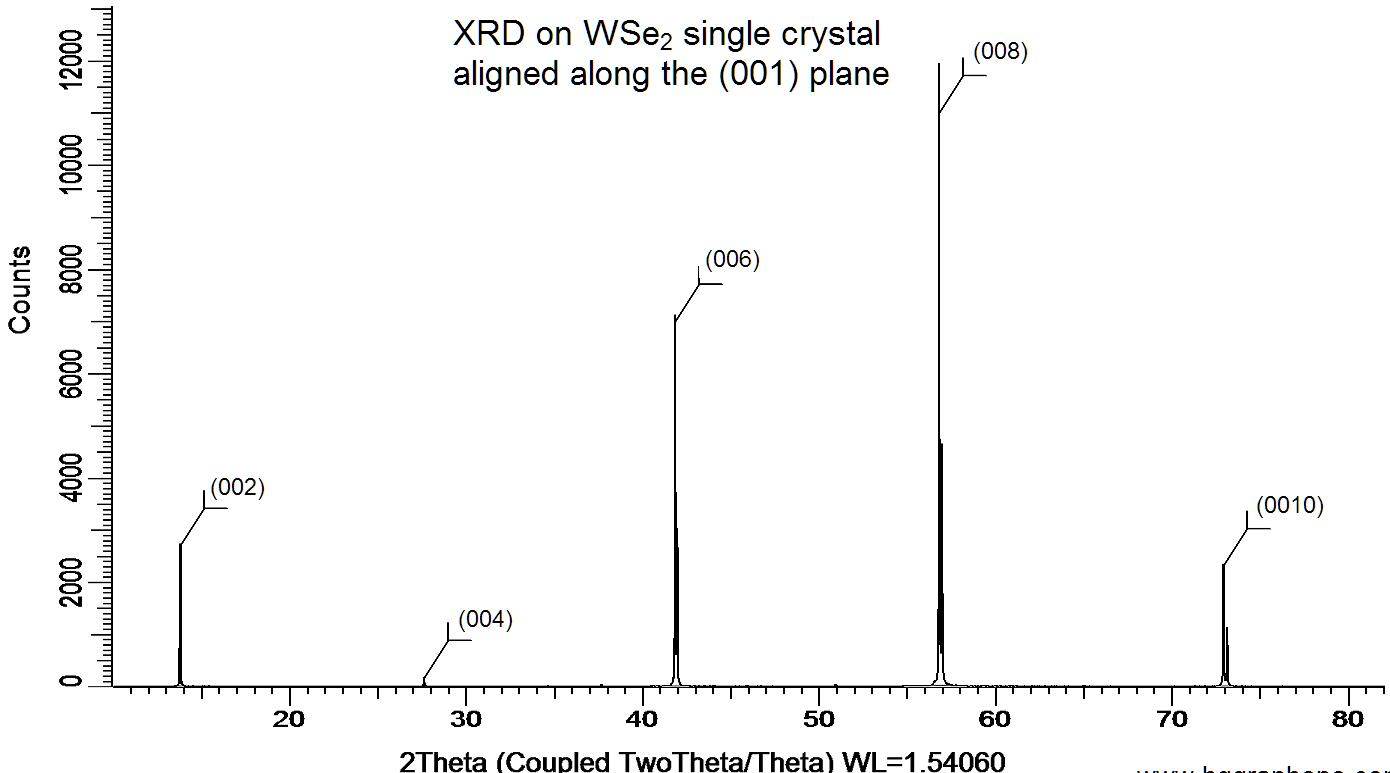

X-ray diffraction on a WSe2 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 5 XRD peaks correspond, from left to right, to (00l) with l = 2, 4, 6, 8, 10

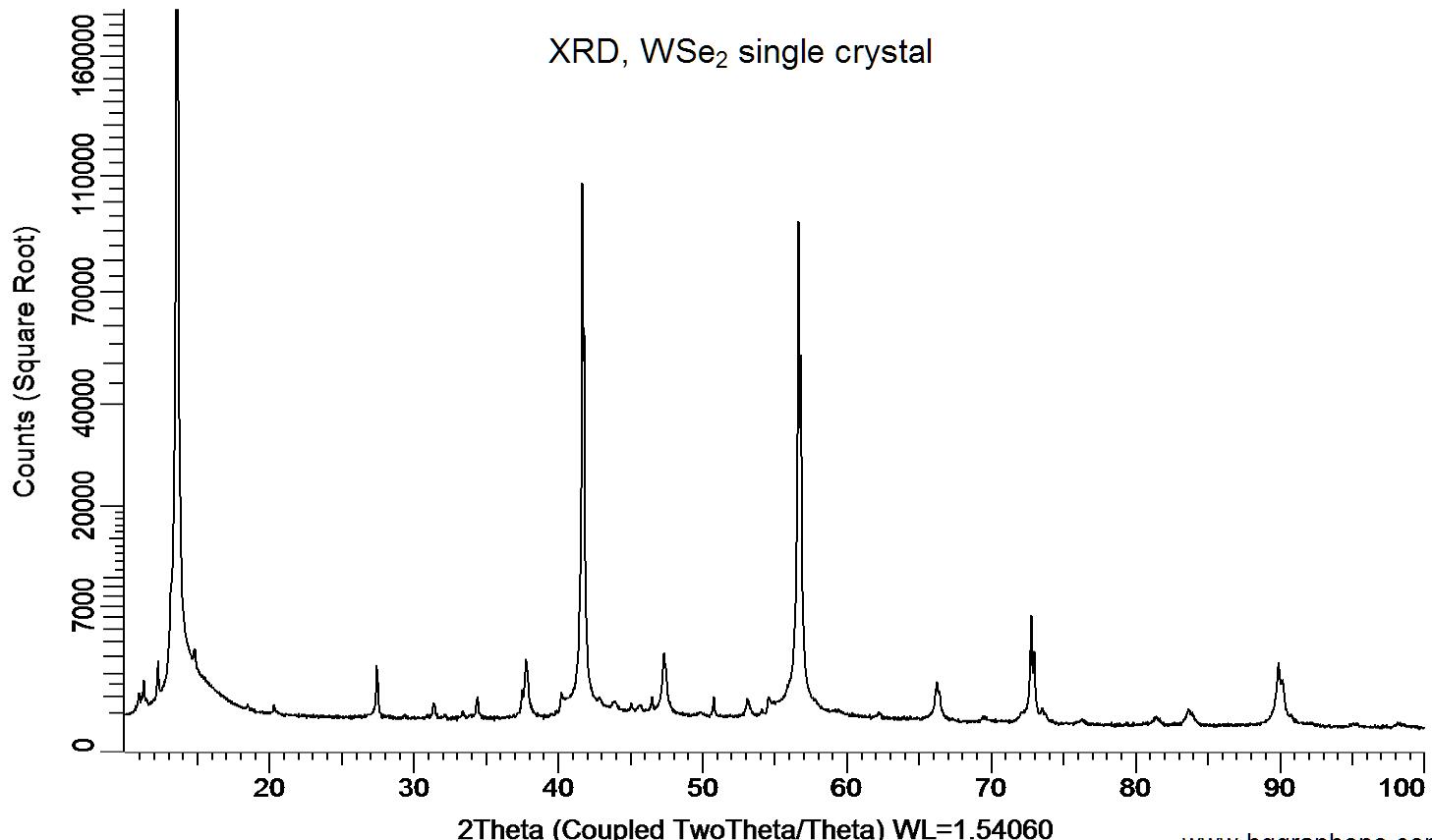

Powder X-ray diffraction (XRD) of a single crystal WSe2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

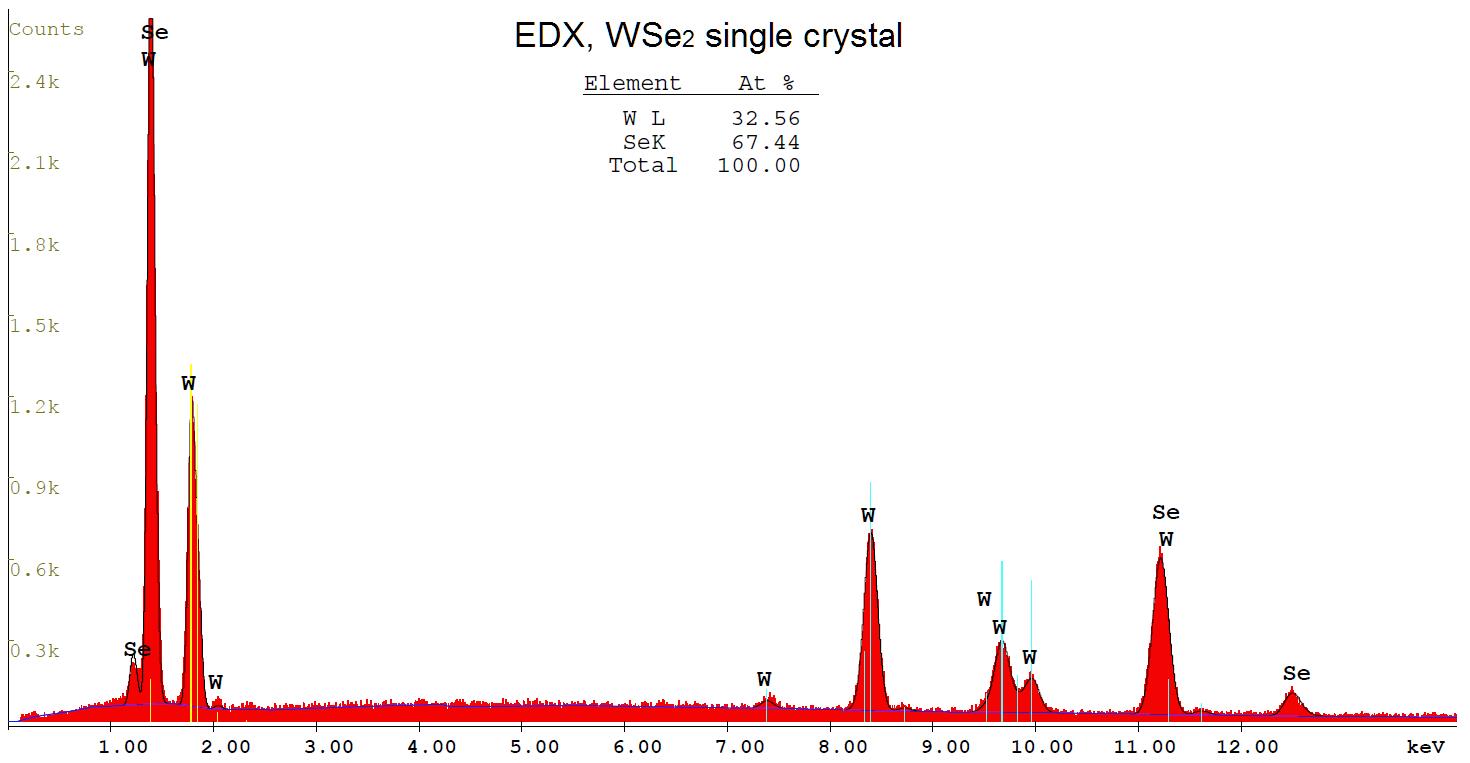

Stoichiometric analysis of a single crystal WSe2 by Energy-dispersive X-ray spectroscopy (EDX).

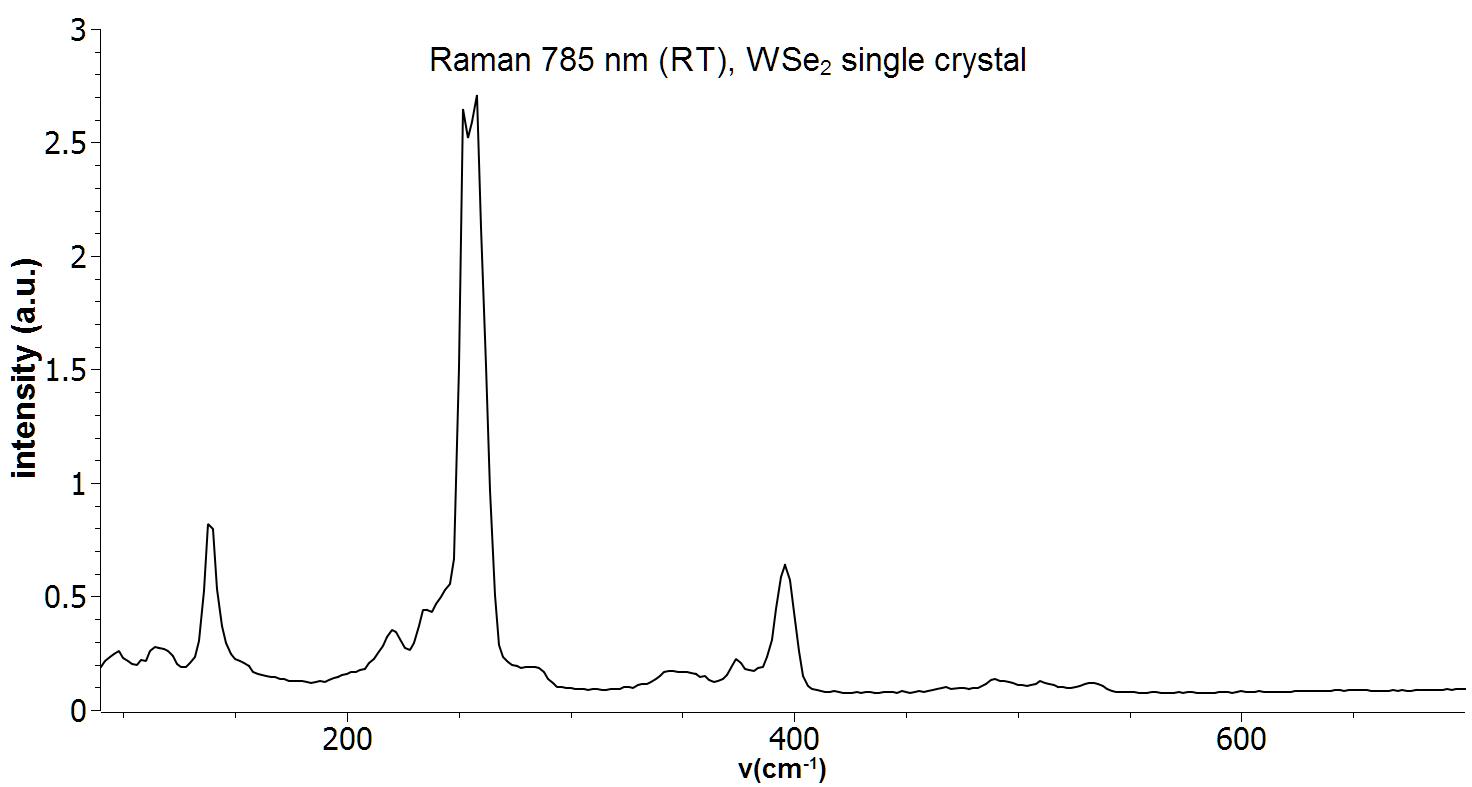

Raman spectrum of a single crystal WSe2. Measurement was performed with a 785 nm Raman system at room temperature.
