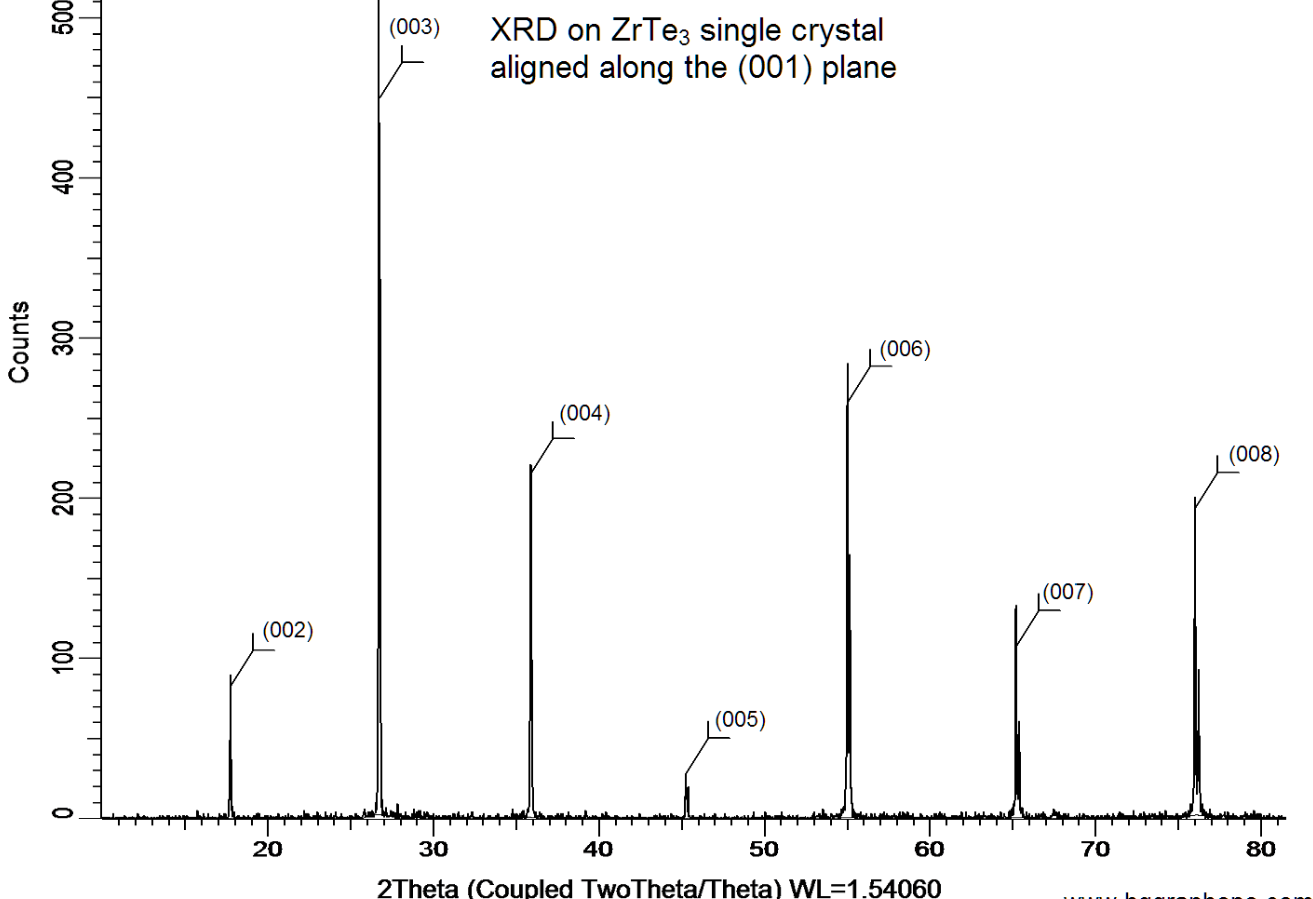

X-ray diffraction on a ZrTe3 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 5 XRD peaks correspond, from left to right, to (00l) with l = 2, 3, 4, 5, 6, 7, 8

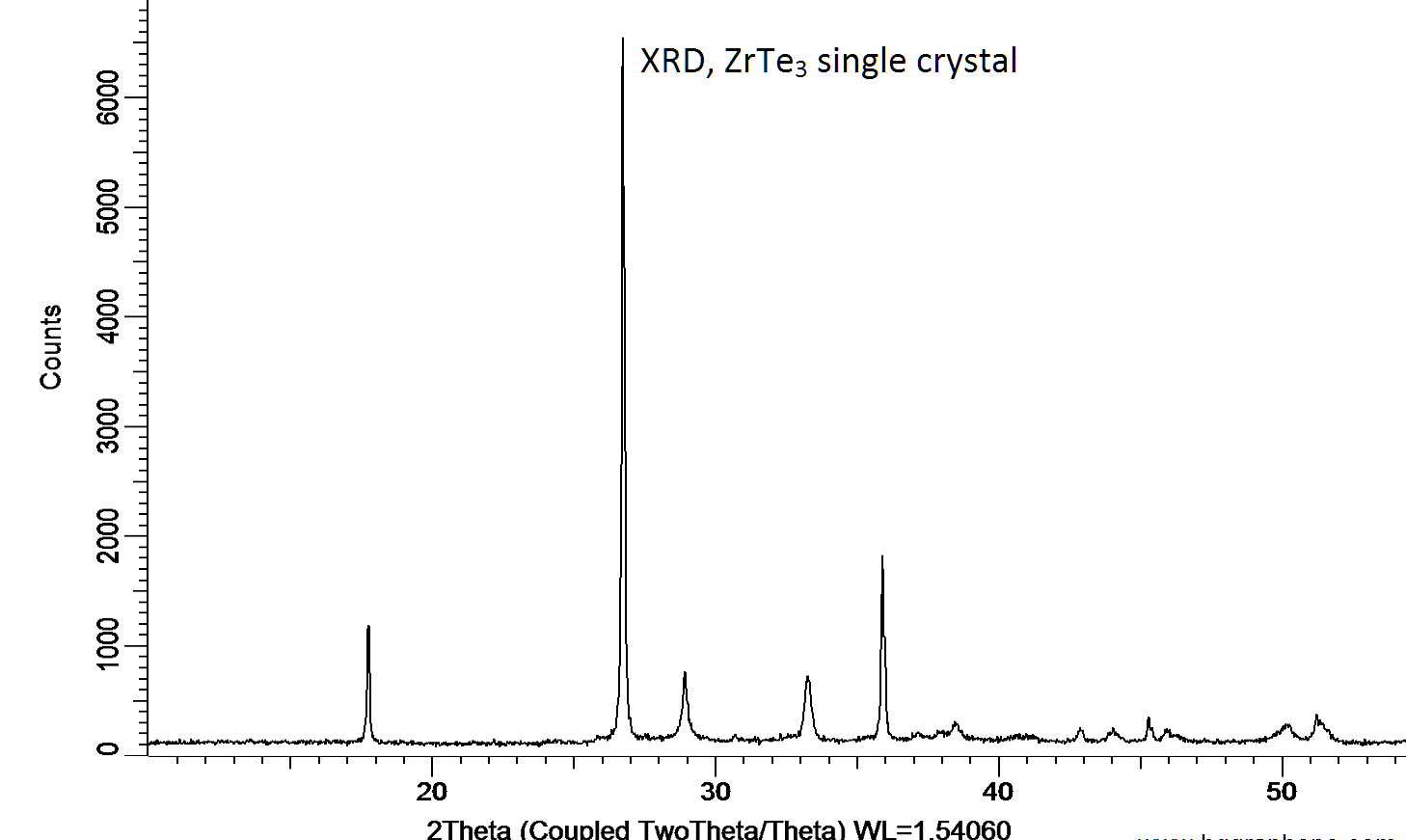

Powder X-ray diffraction (XRD) of a single crystal ZrTe3. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

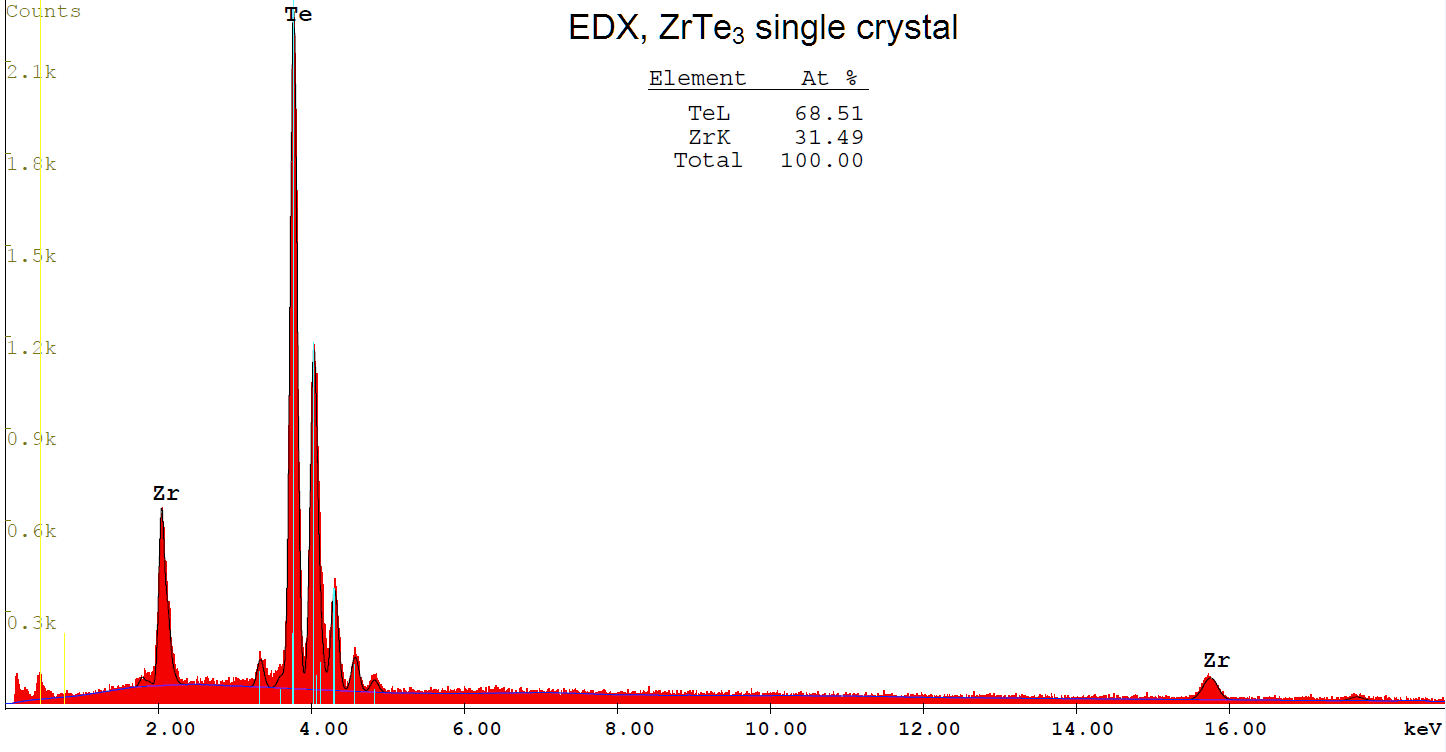

Stoichiometric analysis of a single crystal ZrTe3 by Energy-dispersive X-ray spectroscopy (EDX).

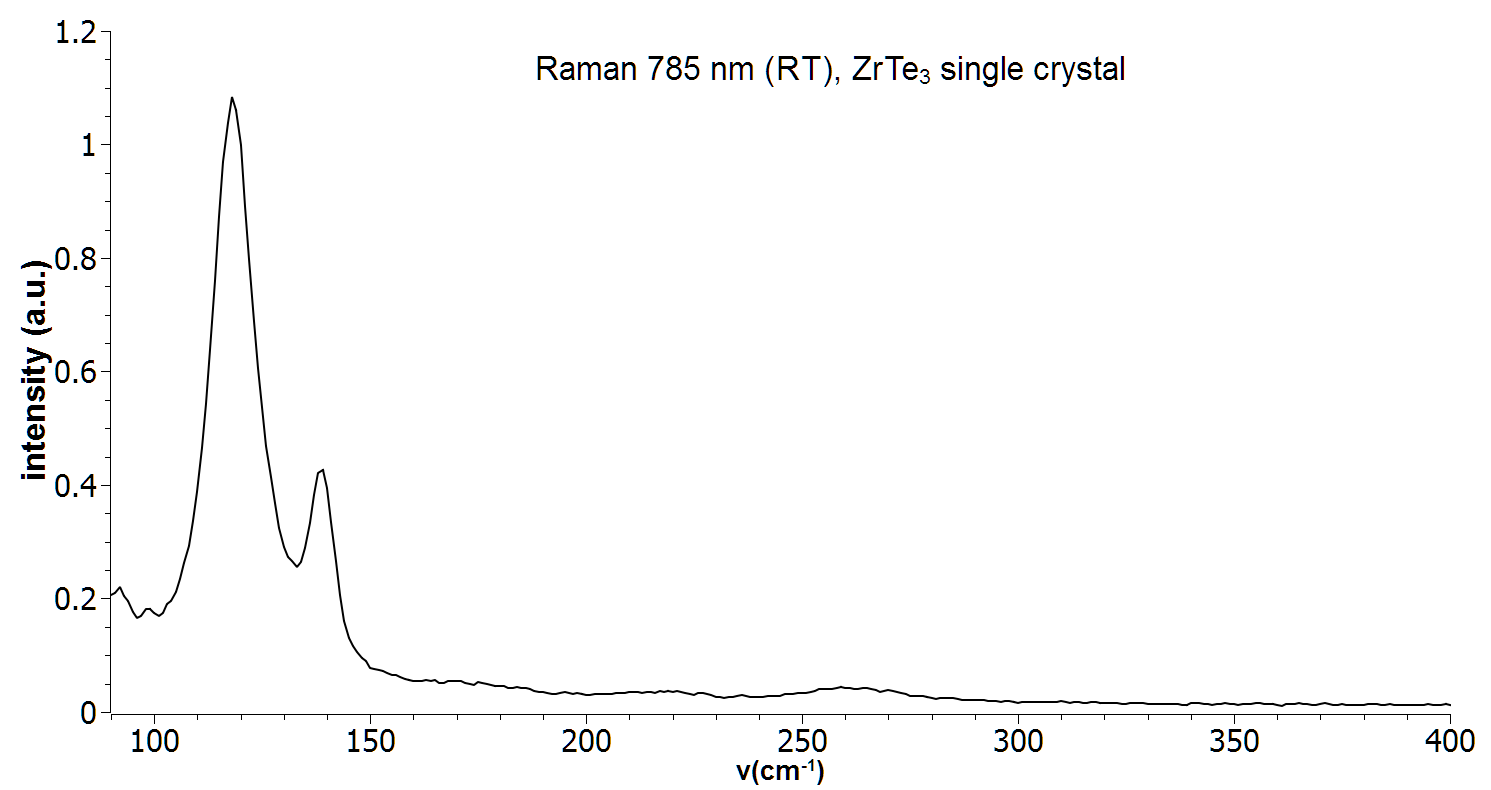

Raman spectrum of a single crystal ZrTe3. Measurement was performed with a 785 nm Raman system at room temperature.
