二硫化鈮晶體 2H-NbS2(Niobium Disulfide)
晶體尺寸：2毫米
電學(xué)性能：金屬，superconductor (Tc~6K), charge density waves (CDW) system.
晶體結(jié)構(gòu)：六邊形
晶胞參數(shù)：a = b = 0.332 nm, c = 1.197 nm, α = β = 90, γ = 120°
晶體類型：合成
晶體純度：＞99.995%

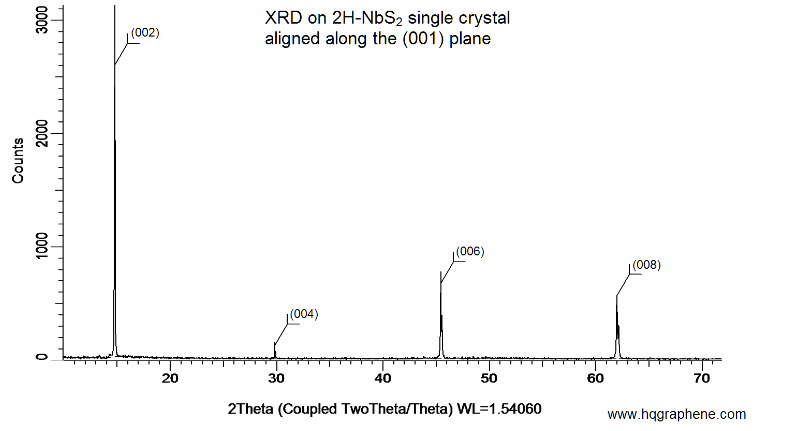

X-ray diffraction on a single crystal 2H-NbS2 aligned along the (001) plane. XRD diffraction was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 2, 4, 6, 8

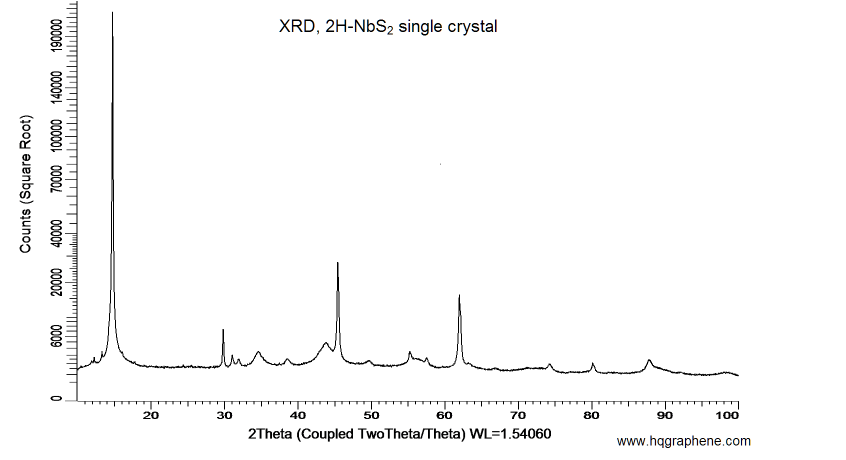

Powder X-ray diffraction (XRD) of a single crystal 2H-NbS2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.
